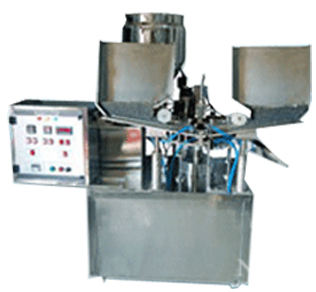

High Speed Tube Filling Machine

Technical Specification

Filling speed	60 to 64 tube per/min
Filling range	5 to 50 gm interchangeable syringe and piston
Tube size	Max. Dia - 27 mm, length - 70 to 180 mm
Operator require	One operator
Power consumption	6 Kw.
Compressor air	6 to 7 kg/PSI
Net weight	400 Kg.
Gross weight	500 Kg.
Dimension	L - 48”, W - 36”, H - 96”

Silent Features:

This machine suitable for all types of aluminum, collapsible, laminated & plastic tube filling machine it’s fully automatic fully automatic tube feeding, orienting, cleaning, filling, sealing, crimping, coding, cutting & ejecting machine. This machine capacity is 3840 tubes per/hour

Filling range 5gm to 50gm capacity.
Filling accuracy ± 1%.
No tube no filling device.
Auto positioning of tube by stepper motor with “I” mark.
Correct & uniform filling.
Rotary type & compact design.
